Sunday, September 28, 2008

Ortho, Aux, Iso Script

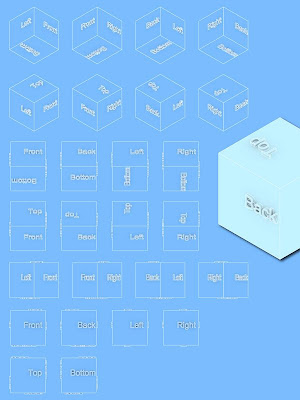

The following script was a quick tool and relatively untested, but one that I would enjoy feedback on. This rhinoscript takes a collection of objects and produces a series of documentation drawings in Orthographic, Auxillary, and Isometric projection producing a total of 26 drawings. Using a batch make2d command, as well as an application of batch render (adapted from work by Che Wei Wang) this script allows for basic documentation of an object within the tolerances of the given tools.
documentationScript
